Assembly – Connect Motor / Lower
January 03, 2018 21:27Align the pump motor with the lower pump end. Position the air inlet of the motor 90° from the material outlet. Install the two (90096) connectors and retain with the (90109) sleeve. Slide the (90...
Assembly – Assemble Lower Body
February 28, 2017 21:48Assemble two (Item 21) balls, two new (Item 35) o-rings from the repair kit, (Items 32 and 39) seats (chamfered side into lower body first, if orifice is on seat 39, install with orifice toward the...
Assembly – Check Stop Assembly

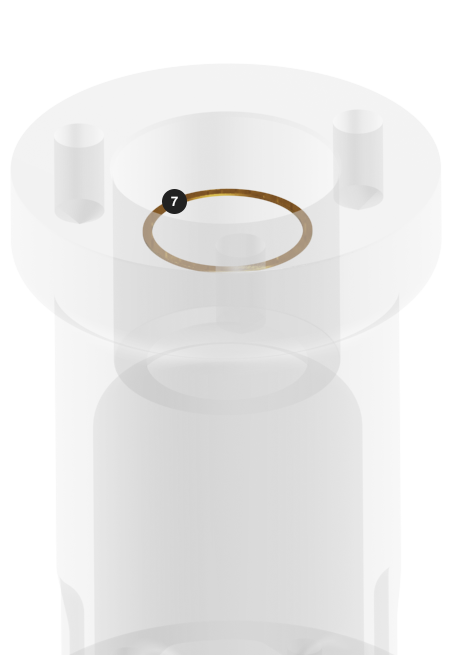

February 28, 2017 20:14Insert new (Item 7) gasket from the repair kit into (Item 25) check stop.
Assembly – Foot Valve Body

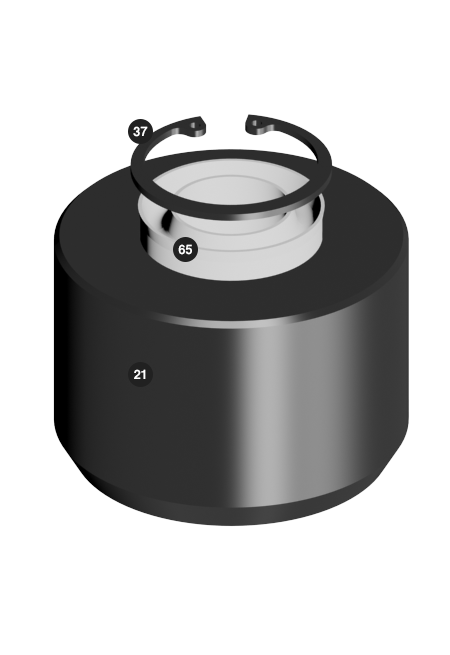

February 28, 2017 18:58Assemble the new (Item 65) “U” cup packing (lips up) from the repair kit into the (Item 21) foot valve body, securing with the new (Item 37) retaining ring from the repair kit.
Assembly – Foot Valve Body

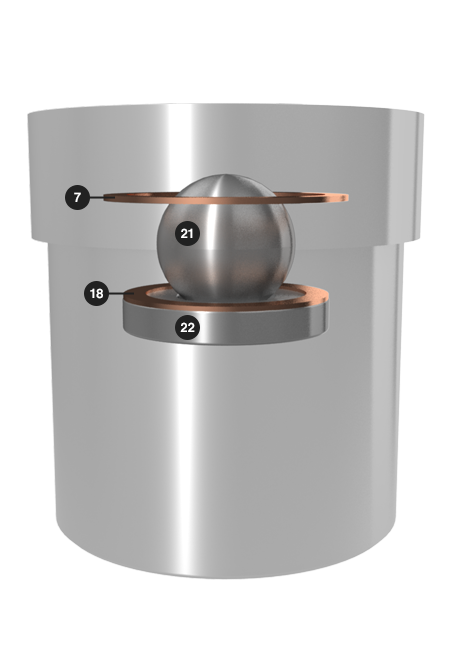

September 14, 2016 20:45In the bottom of the (Item 15) foot valve body install: (Item 22) Check Valve Seat New (Item 18) gasket from the repair kit (Item 21) ball New (Item 8) poly seal packing from the repair kit NO...
Assembly – Assemble Inlet Body
February 28, 2017 21:48Apply Lubriplate Super FML-2 grease to threads on four (Item 4) bolts. Assemble the (Item 34) inlet body (with the threaded inlet in direct alignment with (Item 9) tube) to (Item 18) lower body, se...
Assembly – Primer Rod Assembly

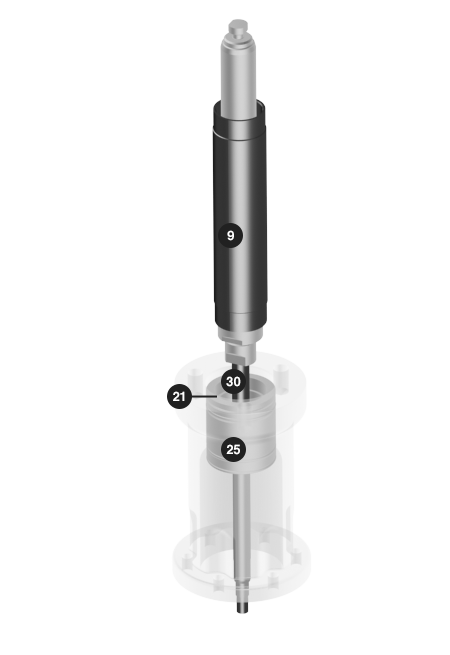

February 28, 2017 20:15Lubricate (Item 30) primer rod, starting with the bottom end, carefully guide it through the top of the (Item 25) check stop and (Item 21) check. Tap or press (Item 9) tube into (Item 25) check sto...
Assembly – Pressure Chamber Body Assembly

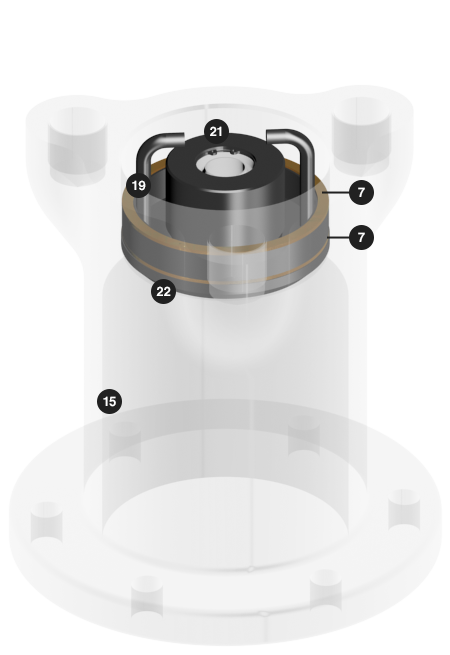

February 28, 2017 18:59Insert the below items into the (Item 15) pressure chamber body: (Item 22) Check valve seat (with beveled edge down) New (Item 7) gasket from the repair kit (Item 21) Foot valve body (with beveled...
Assembly – Foot Valve Body (continued)

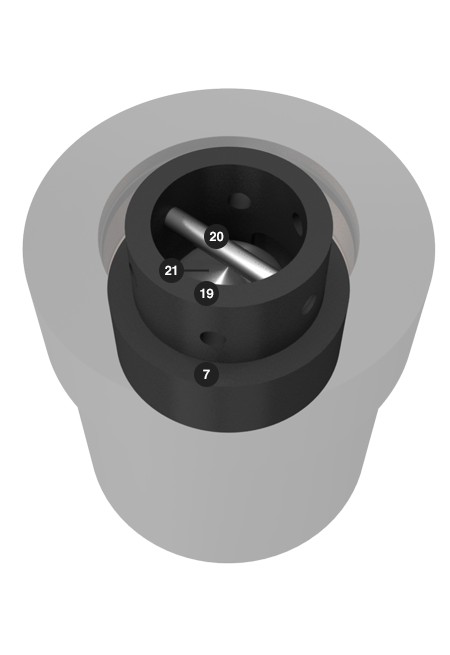

September 14, 2016 20:46Slide (Item 20) pin into factory opening on (Item 19) ball guide. Slide (Item 19) ball guide and new (Item 7) gasket (hidden) from the repair kit over (Item 21) ball inside the (Item 15) foot valve...
Assembly – Install Ball Cap Components
February 28, 2017 21:49Take (Item 6) ball cap and assemble one each of the below items in each cavity: (Item 14) Balls New (Item 28) O-rings from the repair kit (Item 27) Seats (large beveled edge facing down and balls ...
