Assembly – Assemble Lower Packing Assembly & Pump Rod
February 28, 2017 21:43Assemble (Item 29) followers into the new (Item 65) cup packings from the repair kit (orient as shown, see note below). Place (Item 26) pump rod into vice by the button end of the rod, properly pla...

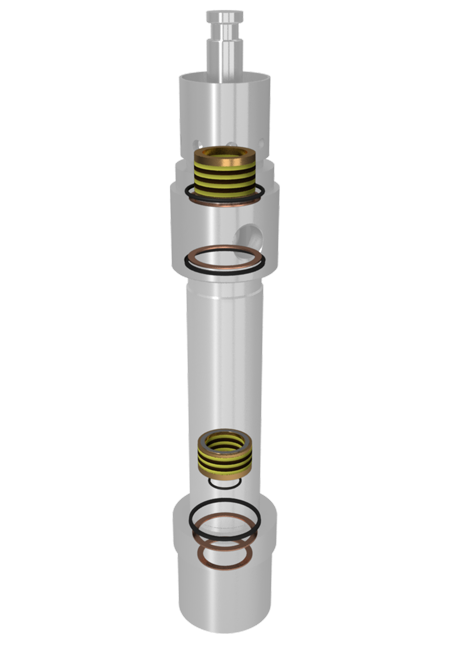

Assembly – Lubricate Packings & Seals
February 28, 2017 20:10Lubricate all packings and seals with a compatible lubricant prior to assembly, as noted in each step.
Kit Installation & Assembly

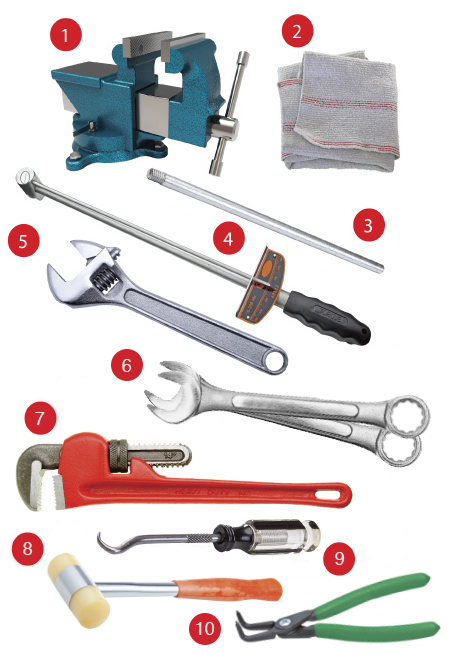

February 28, 2017 18:53All rubber goods and packings should be lubricated with a compatible lubricant prior to assembly. You will need the below list of tools/item(s) for this reassembly. Vice Shop rag(s) or soft cloth ...
Assembly – Assemble Upper Ball & Seat Assembly

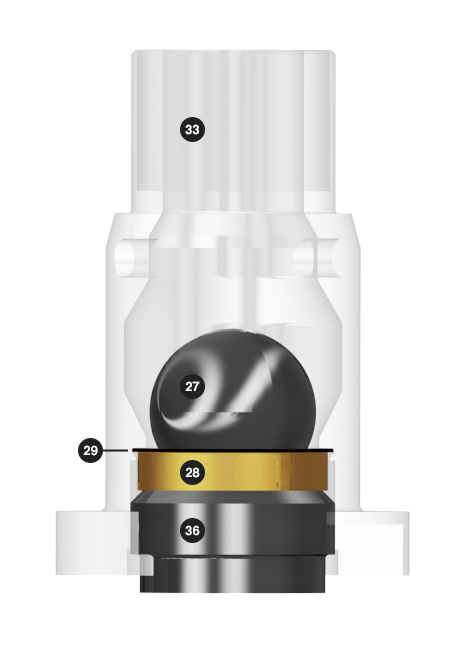

February 28, 2017 15:30Place the (Item 27) ball, (Item 29) gasket and (Item 28) seat (Note: beveled edge towards ball) into the bottom end of the (Item 33) piston and thread the (Item 36) adapter into place.
Kit Installation & Assembly Overview
September 14, 2016 20:00Completely clean parts, evaluate and inspect for wear. Key Areas For Wear: Plunger Main material tube Balls Seats Packings Foot valve body parts With the foot valve body parts, inspect the ball, ...
Assembly – Assemble Lower Packing Assembly Into Tube

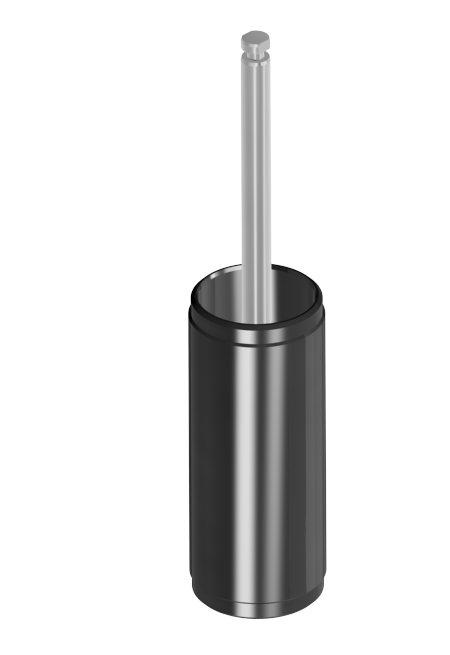

February 28, 2017 21:44Thoroughly lubricate the (Item 65) cup packings and the inner diameter of (Item 9) tube with a compatible assembly lubricant. Starting from either end of (Item 9) tube, slide assembled Pump Rod &am...
Assembly – Check Reassembly
February 28, 2017 20:11Assemble the new (Item 65) “U” cup packing from the repair kit into the (Item 21) check, securing with the new (Item 37) retaining ring from the repair kit with the appropriate sized internal snap ...
Kit Installation & Assembly Overview
February 28, 2017 18:54637128-XX4-B for general repair of 66236-XXX-B lower pump ends. Completely clean parts, evaluate and inspect for wear. Key Areas for Wear: Plunger Main material tube Balls Seats Packings Foot valv...
Assembly – Plunger & Piston Assembly

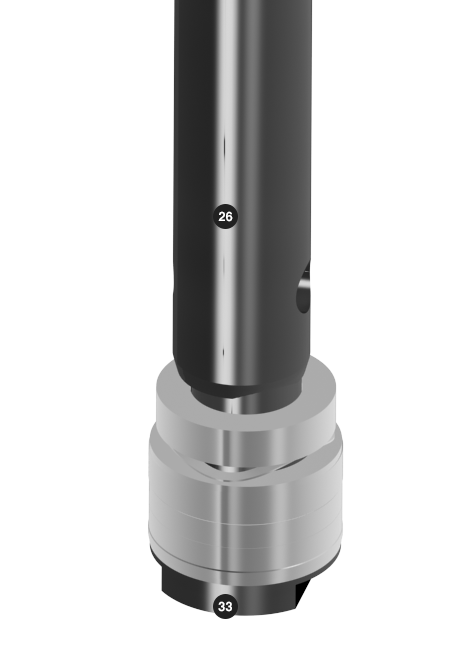

February 28, 2017 15:31Thread the (Item 33) piston assembly into the bottom of the (Item 26) plunger.
Assembly – Lubricate Packings & Seals
September 14, 2016 20:12Lubricate all packings and seals with a compatible lubricant prior to assembly, as noted in each step.
